[Mrtrix-discussion] Crossing-fibers gray matter CSD

Mon Apr 13 05:37:43 PDT 2009

Hi Donald,

Indeed strange tracking results... I attached several files:

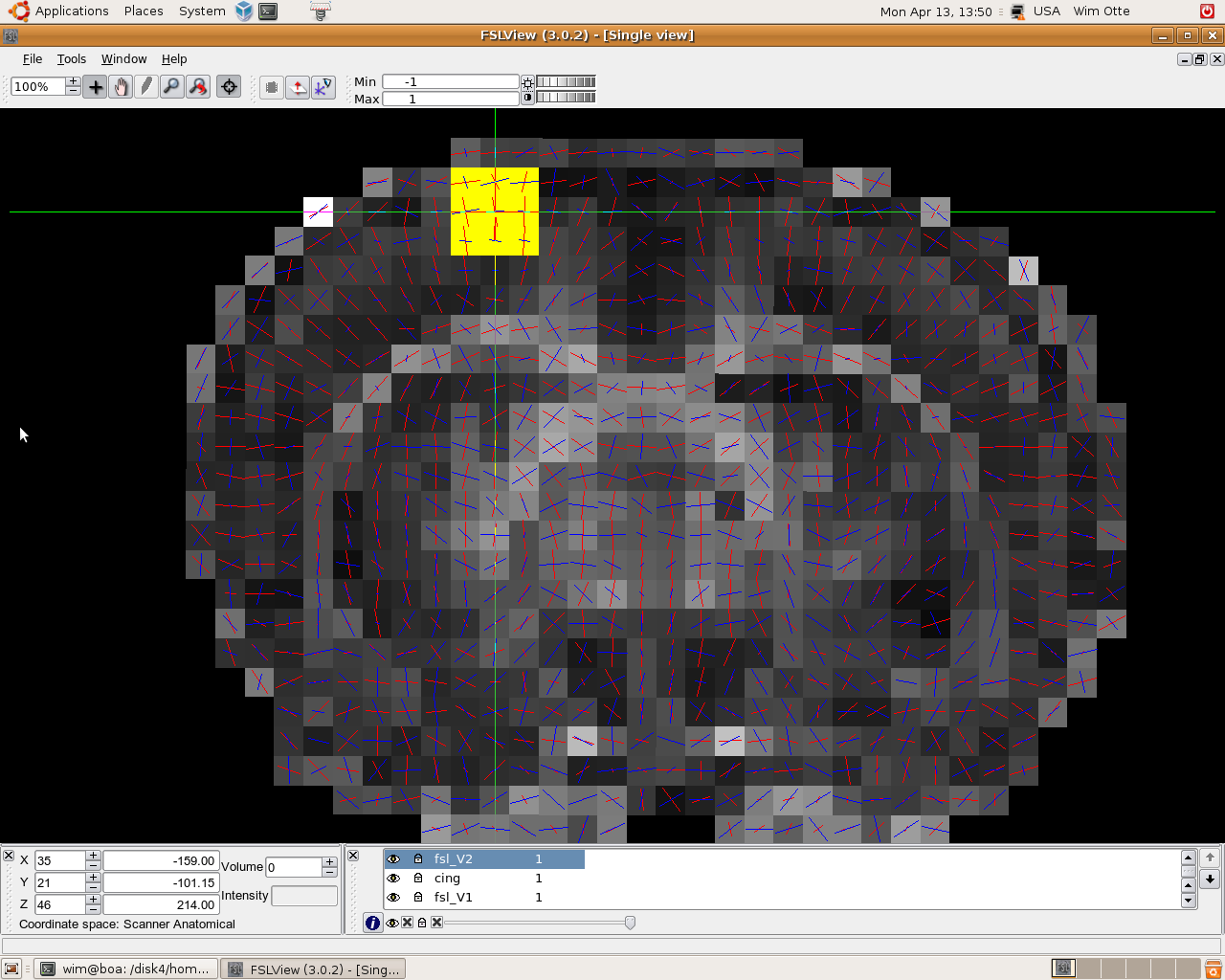

- screenshot: the first and second principal eigenvectors, constructed
with FSL, overlaid on the FA-map ('ground truth'...).

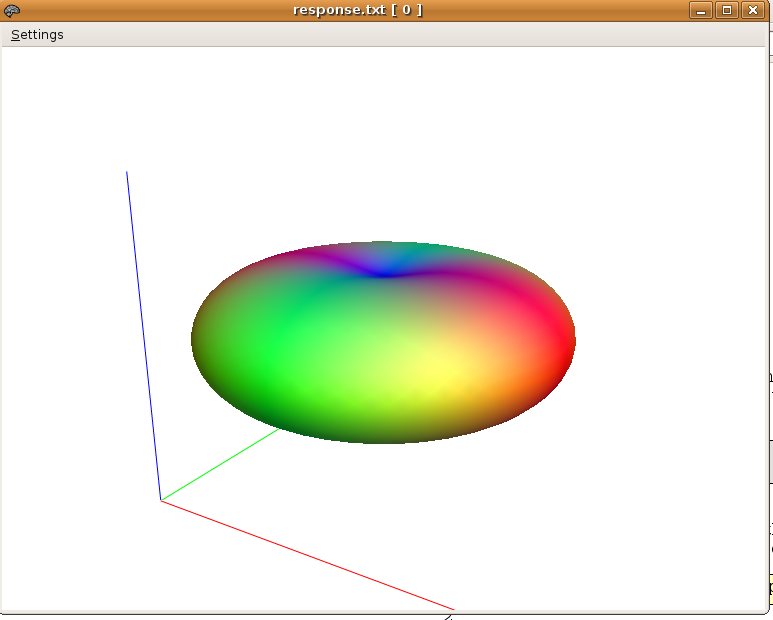

- screenshot: response function estimated in white matter voxels
- encoding.txt: (constructed from bvals and bvecs using the script
combine_bvecs_bvals.pl)
- csd_steps.sh: script used to construct fibers from the gray-matter seed.

Great that you are willing to check these files!

Wim

On Mon, Apr 13, 2009 at 4:29 AM, Donald Tournier
<d.tournier at brain.org.au> wrote:
> HI Wim,
>
> These are some of the strangest tracking results I have seen so far!
> On the other hand, it looks like you are tracking through cortex, so
> maybe that could explain a few things. The main orientations look OK,
> even in the cortex (I assume this is a very young animal). I'm
> surprised that the non-radial directions in the cortex are so
> consistent - they all seem to be pointing at 45°. Not too surprised
> that the tracking down to the white matter stops so abruptly: the
> tracks would need to bend quite sharply to get into the corpus
> callosum. You might want to relax the curvature constraint if that's
> want you're trying to get.
>
> I don't have that many answers to this. Maybe there was a mistake in
> the tracking? The FODs look OK on that coronal, but they do look odd
> on the axial (not sure if I'm getting the slice orientations correct,
> I'm used to human brains...). Are you using the correct file for the
> tracking? Maybe you can copy/paste your entire command-line session to
> see I can spot a problem somewhere...?
>
> Another problem could be some non-uniformity in the gradient
> directions you use in your acquisition. That might cause strangely
> consistent directions to appear that would otherwise be random noise.
> Could you post your gradient encoding file? It's a text file with 4
> columns in it, it might be called 'encoding.b'. If you don't have it,
> that information might be stored in your dwi.mif file, you can extract
> it with this command: "mrinfo dwi.mif -grad encoding.b".
>
> Cheers,
>
> Donald.
>
>
> On Thu, Apr 9, 2009 at 7:25 PM, Wim Otte <wim at invivonmr.uu.nl> wrote:
>> Hi Donald,
>>
>> Converting the reference.nii does the job! Thanks.
>>
>> Before running CSD on all gray-matter ROIS, I did some testing of the
>> streamtrack application.
>>
>> What I notice is some straight line of high probability voxels through
>> the brain (from one hemisphere to the other; without running through
>> an anatomical struture). I know that false positives are still a
>> problem to be solved in fiber tracking (review D. Jones), but I just
>> want to ask if other people (using human data for example) encounter
>> the same thing.
>>
>> I attached some screenshots from mrview (fODFs with ROI) and fslview
>> (fa with tracks2prob result 1% - 100%).
>>
>> Is it normal to get these cross-like connectivities using prob. fiber tracking?
>>
>> Wim Otte
>>
>>
>>
>> On Wed, Apr 8, 2009 at 3:11 AM, Donald Tournier <d.tournier at brain.org.au> wrote:
>>> Hi Wim,
>>>
>>> Yes, in theory, tracks2prob should just copy the layout from the
>>> reference image. But it so happens that the NIfTI image handling
>>> routine overrides the layout and sets it to +0,+1,+2. There is no
>>> point in trying to use mrconvert to change the layout for a NIfTI
>>> image, it will always end up with the same result. What you could do
>>> is mrconvert the reference.nii image, and then the layouts will both
>>> be +0,+1,+2. Does that sound like a workable solution?
>>>
>>> I might try to make the NIfTI handler honour the layout specification,
>>> but that won't be ready for some time...
>>>
>>> Regards,
>>>
>>> Donald.
>>>
>>>
>>
>> _______________________________________________
>> Mrtrix-discussion mailing list
>> Mrtrix-discussion at www.nitrc.org
>> http://www.nitrc.org/mailman/listinfo/mrtrix-discussion
>>
>>
>
>
>
> --
> Jacques-Donald Tournier (PhD)
> Brain Research Institute, Melbourne, Australia
> Tel: +61 (0)3 9496 4078
>
-------------- next part --------------
0 0 0 0
0 0 0 0
-0.632726 0.71705 0.292398 1184.33
-0.220921 -0.489019 -0.843833 1184.33
-0.598608 -0.158229 0.785259 1184.33
-0.274622 -0.929421 -0.246495 1184.33
0 -1 0 1184.33
-0.466526 0.558353 0.686 1184.33
-0.336422 0.933132 0.126829 1184.33
0.81168 0.232785 0.535711 1184.33
0.732516 0.577319 -0.360725 1184.33
-0.387697 0.292638 -0.874102 1184.33
0.885998 -0.13048 0.444951 1184.33
-0.275693 -0.7578 -0.591382 1184.33
-0.586267 -0.562321 -0.58317 1184.34
-0.686594 -0.725985 0.039175 1184.33
0.134776 -0.80898 0.572177 1184.33
-0.343315 -0.051486 -0.937808 1184.33
0.68049 -0.397574 0.615523 1184.33
-0.068523 0.689383 0.721149 1184.33
-0.29863 0.012096 0.954292 1184.33
0.562403 -0.218954 -0.797347 1184.33
-0.817386 0.074716 0.571225 1184.33
-0.531793 -0.301421 -0.791417 1184.33
0.611571 -0.787426 0.077086 1184.33
0.109463 0.930741 -0.348912 1184.33
0.824626 0.494644 0.274444 1184.33
0.345587 -0.806146 -0.48031 1184.33
-0.830487 -0.267359 0.488682 1184.33
0.055223 -0.521854 0.851245 1184.33
-0.93172 0.246531 0.266684 1184.33
-0.223094 0.401449 0.888295 1184.33
-0.976944 -0.091891 0.19271 1184.33
0.81778 -0.495498 0.292776 1184.33
0.974745 -0.200979 0.097361 1184.33
0.449396 0.788236 -0.420389 1184.33
-0.545344 -0.503117 0.670427 1184.33
0.212859 0.700351 -0.681322 1184.33
0.844666 -0.531024 -0.067466 1184.33
0.666714 -0.05193 0.743502 1184.33
-0.905458 -0.417154 0.078278 1184.33
-0.383555 -0.91905 0.090735 1184.33
0.285804 0.363391 -0.886715 1184.33
0.744752 -0.441486 -0.500435 1184.33
0.030143 -0.178457 0.983486 1184.33
-0.96888 -0.15333 -0.194325 1184.33
-0.572993 -0.764971 -0.294107 1184.33
-0.035285 -0.202734 -0.978598 1184.33
0.383871 -0.599947 0.70193 1184.33
0.278339 -0.927574 0.249265 1184.33
-0.543917 0.727658 -0.417932 1184.33
-0.032728 0.917312 0.396822 1184.33
