Jul 12, 2019 08:07 AM | lllllll
Parametric Images
Hello,
First, thank you for your toolbox, it is very nice.
I have a problem when I want to access to the pixel-wise Calculation and to the parametric images.
I Loaded my dynamic image in NIFTI format, then I loaded my mask in NIFTI format (for example my reference region is cerebellum, my ROI is Putamen), then the software asked me to load a .txt files for the mask, so I loaded it. I can then prepare the TACs and process the model (SRTM 2 for example). I obtained my Fit curves and my parameters. But I don't have access to step 3 for the wise Calculation. Is there anything I missed?
Thank you for your response.
Laurent
First, thank you for your toolbox, it is very nice.
I have a problem when I want to access to the pixel-wise Calculation and to the parametric images.
I Loaded my dynamic image in NIFTI format, then I loaded my mask in NIFTI format (for example my reference region is cerebellum, my ROI is Putamen), then the software asked me to load a .txt files for the mask, so I loaded it. I can then prepare the TACs and process the model (SRTM 2 for example). I obtained my Fit curves and my parameters. But I don't have access to step 3 for the wise Calculation. Is there anything I missed?
Thank you for your response.
Laurent
Jul 12, 2019 09:07 AM | José Paredes-Pacheco - FGUMA. Molecular Imaging Unit, CIMES
RE: Parametric Images
Hello Laurent,
Thank you for using our toolbox. We hope you find it useful.

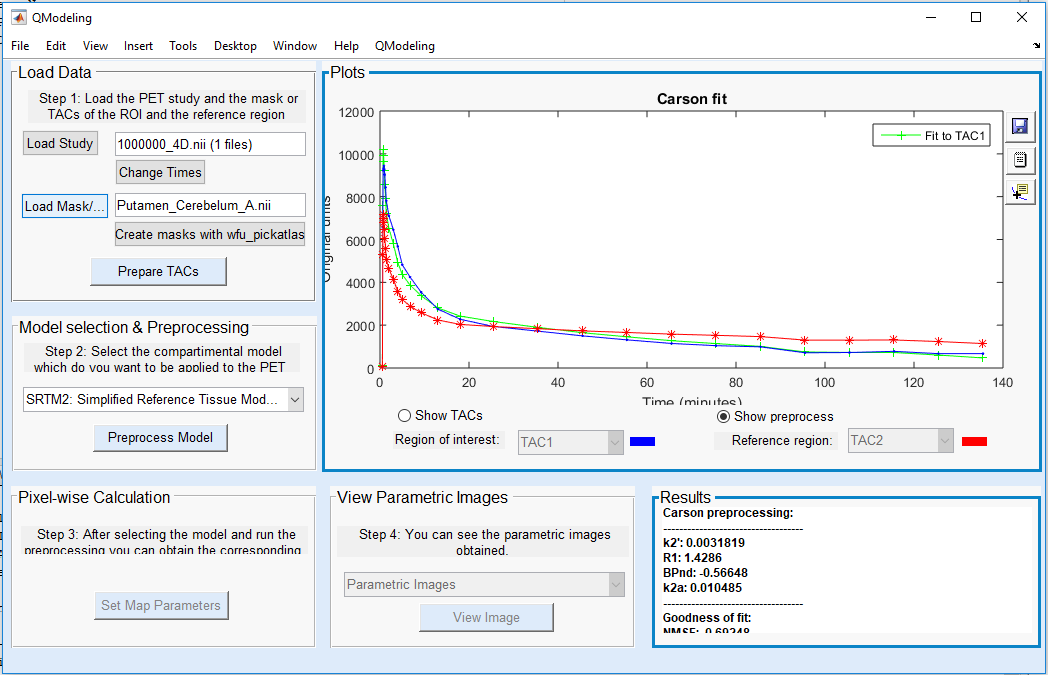

Regarding your problem. In the modal window of the Step 2, after click on Preprocess model button and generate the fitted curve, the modal window is minimized to see the results. So, you have to maximize it and click on "OK" button of the modal window (attached file) to accept the preprocessing results before continue to Step 3 Pixel-wise Calculation.
If you have any more problems, please let us know.
Regards,
Jose
Thank you for using our toolbox. We hope you find it useful.
Regarding your problem. In the modal window of the Step 2, after click on Preprocess model button and generate the fitted curve, the modal window is minimized to see the results. So, you have to maximize it and click on "OK" button of the modal window (attached file) to accept the preprocessing results before continue to Step 3 Pixel-wise Calculation.
If you have any more problems, please let us know.
Regards,
Jose
Jul 12, 2019 10:07 AM | lllllll
RE: Parametric Images
Thank you very much for your help, that works.
Regards,
Laurent
